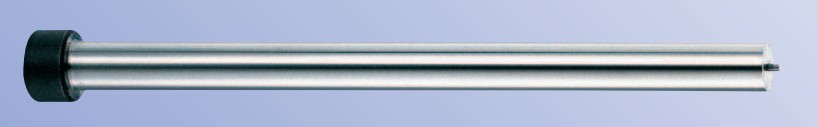

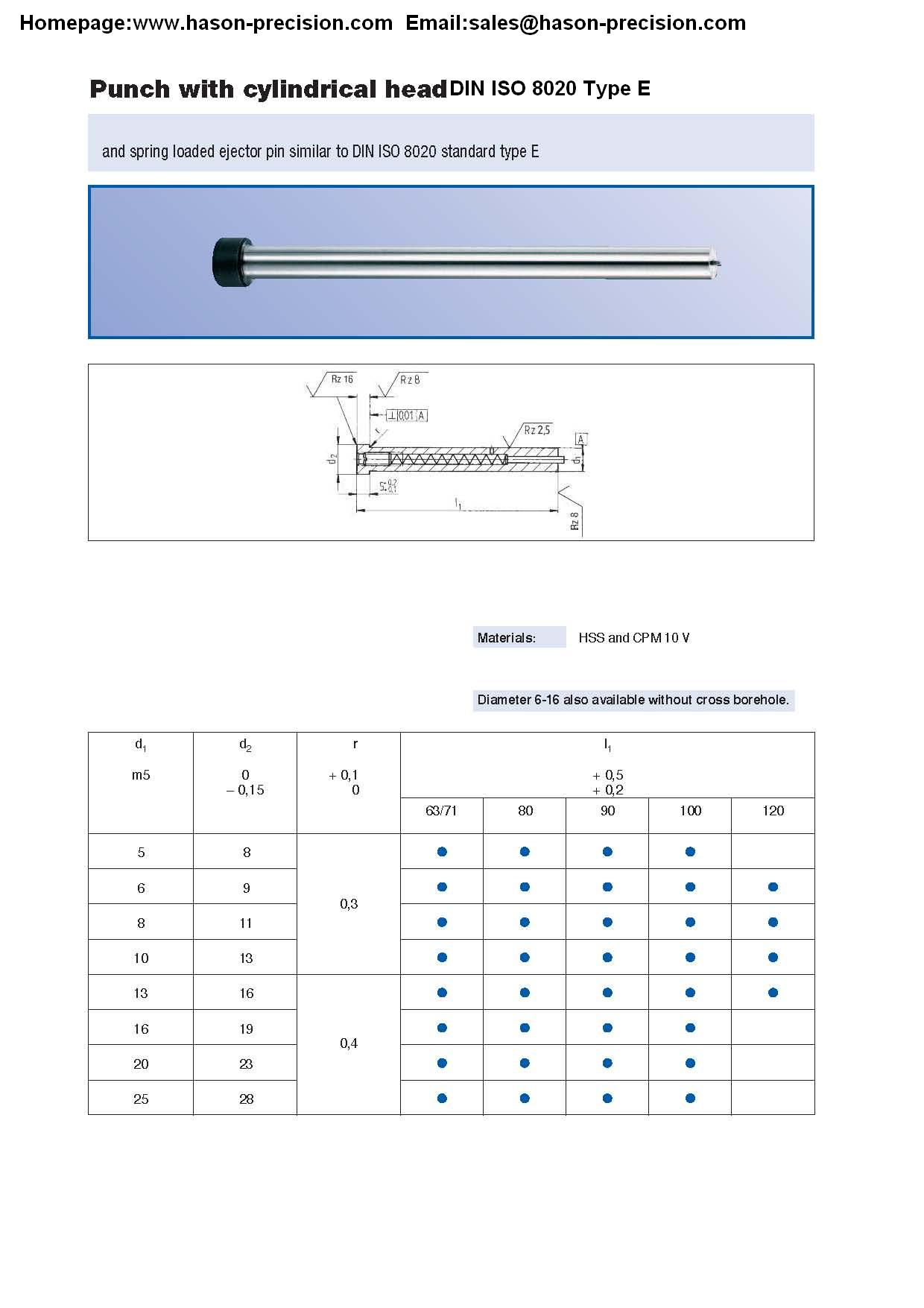

Punch DIN ISO 8020 Type E

Material: HSS(1.3343), CPM10V
Hardness: Head:HRC45-50, Shaft: HRC62-66

Feature: minimum diameter to be 0.2mm,maximum precision up to0.002mm. Surface Coating: TiN, TICN,AlTiN, at the customer's requirement we can laser engrave on the part surface. Advanced equipment can make the parts with high hardness, high ductility, high wear resistance and high heat resistance.








 Punch DIN ISO 8020 Type E
